New G1wyd horizontal single head liquid filling machine
por qué nos eligen?
1. más de 20 años de fabricación de máquinas de embalaje
2. 100% inspección de control de calidad antes del envío
3. Garantía de 3,12 meses
4. los productos pasan la certificación CE
Descripción del producto
Introducción:
This machine is suitable for water, beverage, juice, detergent, etc.,is the liquid the ideal equipment for filling. Suitable for medicine, cosmetics, food, pesticide and other special industries.
Características:
1.Diseño razonable, forma compacta, funcionamiento sencillo
2. The contact part with the material is all made of 304stainless steel, meet the food grade requirements.
3. There are filling volume adjustment handle, filling speed can be adjusted, filling high precision.
4.This machine has two pneumatic filling ways, foot and automatic, and they can be switched randomly.
Filling range:
10-100ml, 30-300ml, 50-500ml, 100-1000ml, 500-2500ml, 1000-5000ml.
Parámetro
| Modelo | G1WYD100 |
| Gama de llenado | 10-100 ml |
| Capacidad del producto | 5-20 bots/min |
| Precisión de llenado | ±1% |
| Presión atmosférica | 0,4-0,6MPa |
| Compresor de aire necesario | ≥3KW 100L |

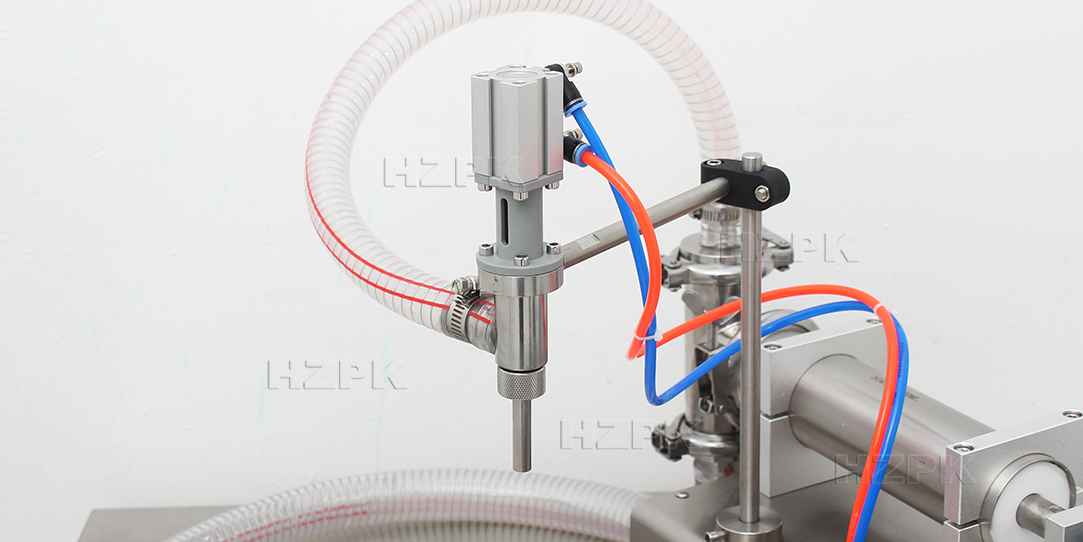

Filling nozzle
The filling nozzle is made of high quality 304 stainless steel, which is food grade.
Customizable:2, 4 filling nozzles can be customized

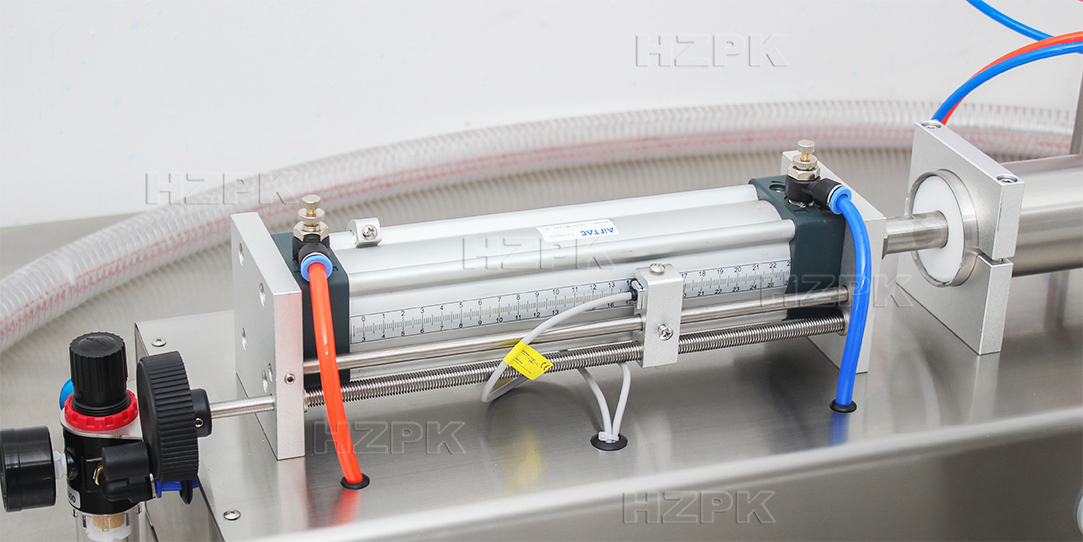

Cylinder
Practical high quality AirTAC cylinder, durable.Rotate the wheel to adjust the filling volume

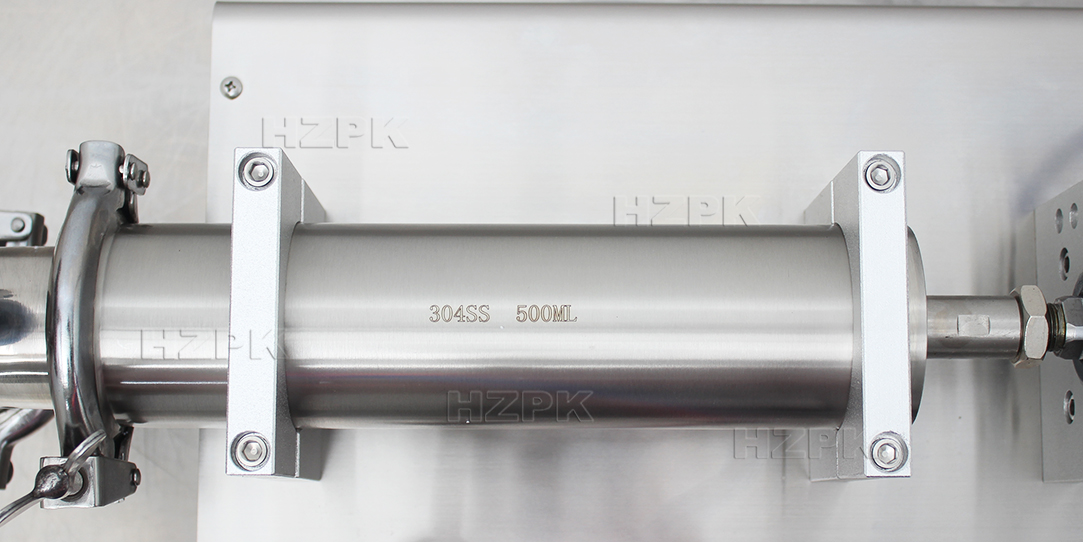

Material cylinder
Barrel made of 304 stainless steel, food grade.If filling corrosive products, the barrel of 316 stainless steel can be customized

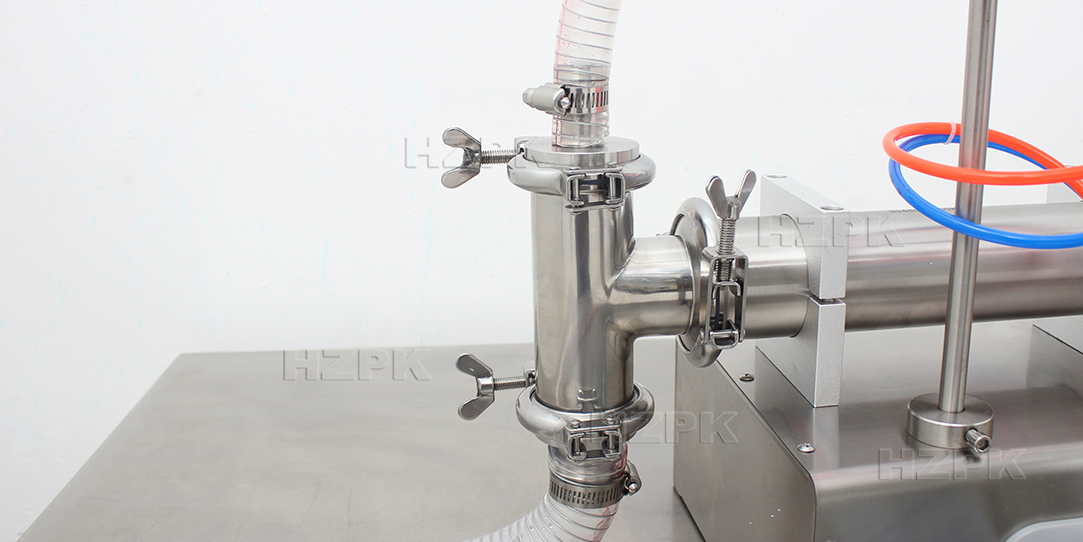

Buckle structure
Most parts are connected by buckle structure, easy to disassemble , clean and maintain
Gaskets are also made of food-grade materials
