Semi-automatic ultrasonic sealing machine
por qué nos eligen?
1. más de 20 años de fabricación de máquinas de embalaje
2. 100% inspección de control de calidad antes del envío
3. Garantía de 3,12 meses
4. los productos pasan la certificación CE
Descripción del producto

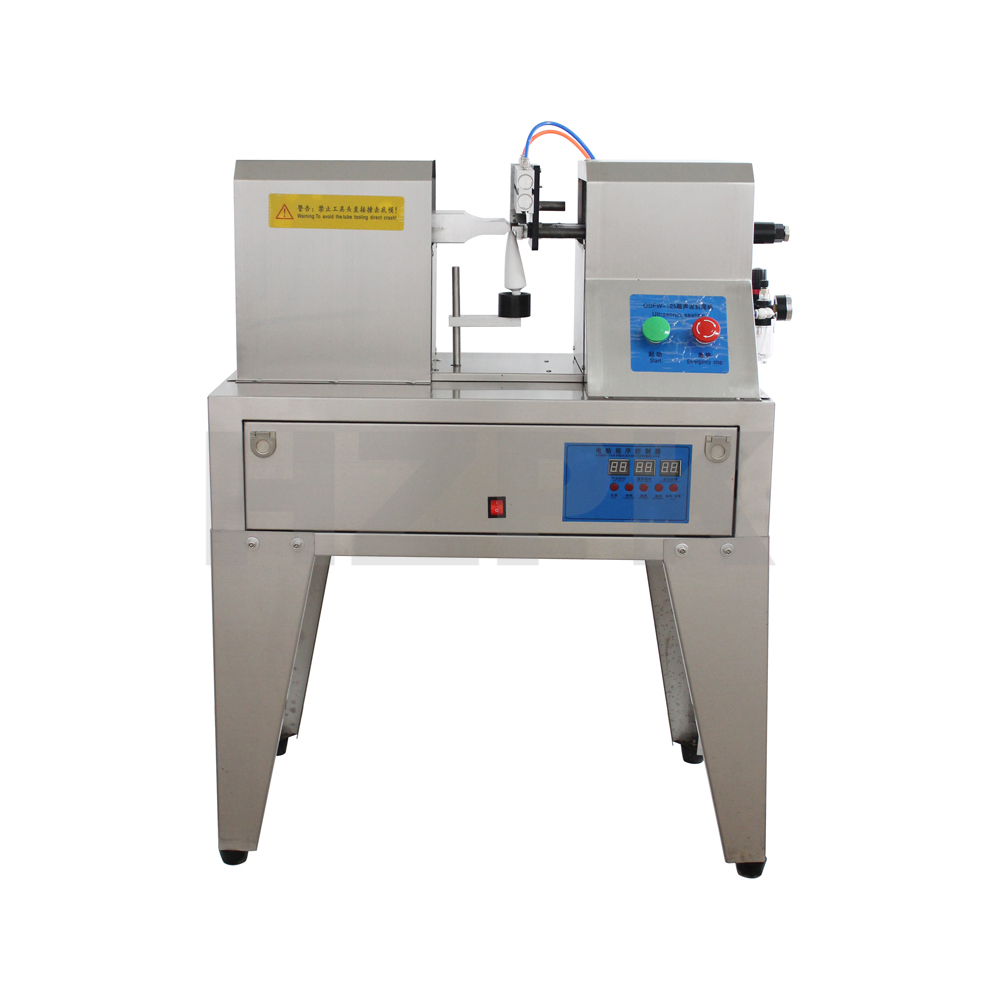

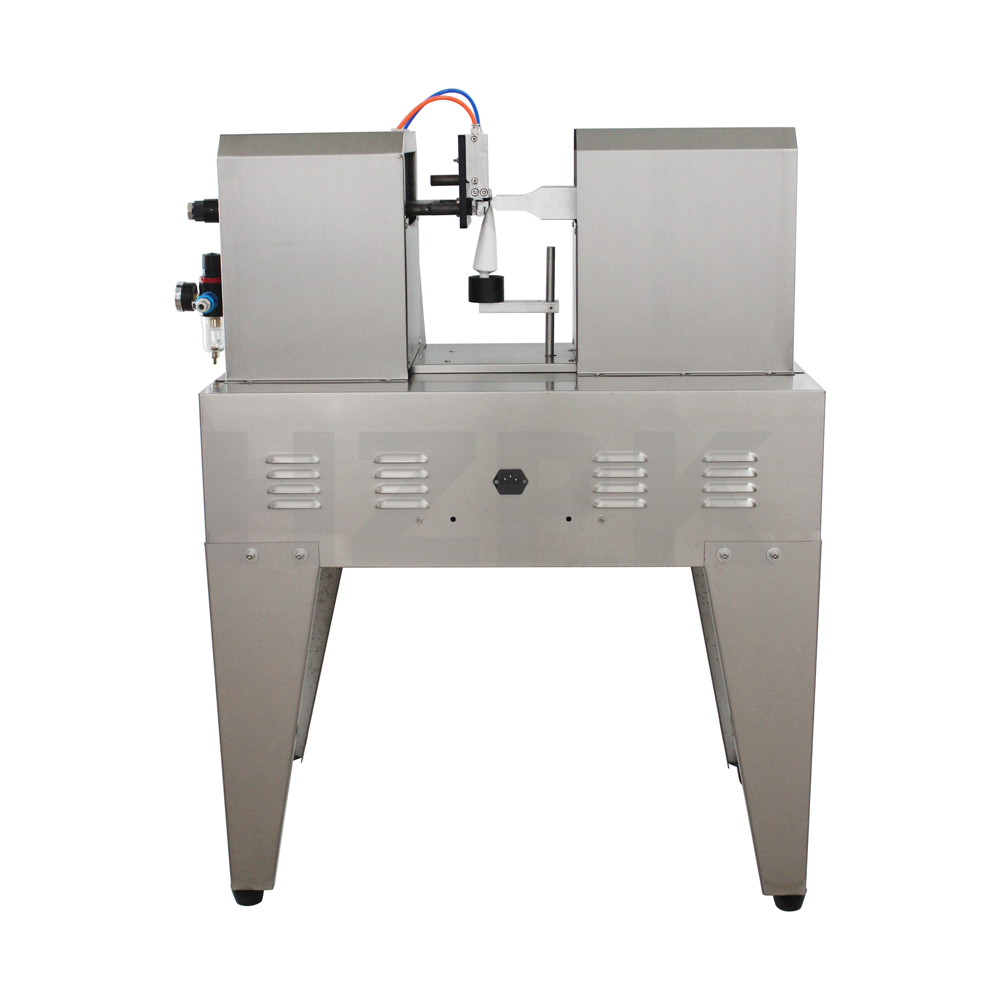

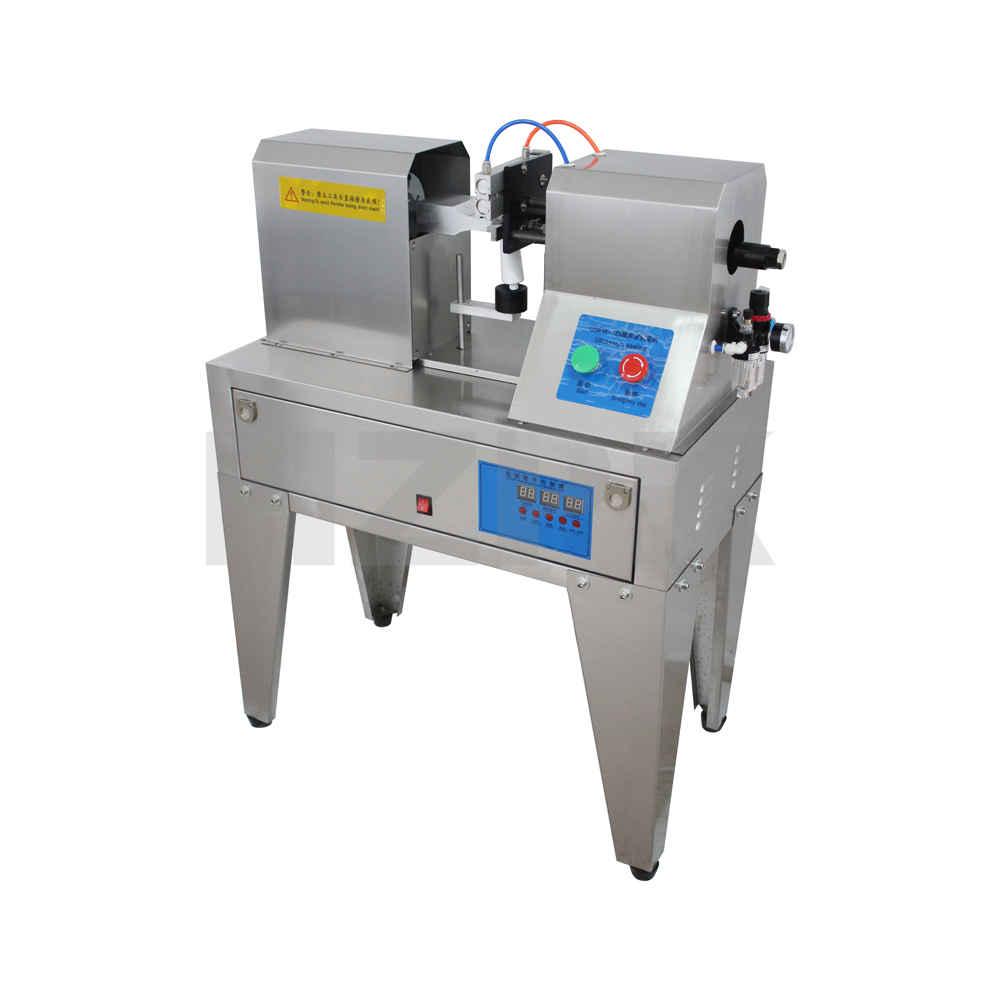

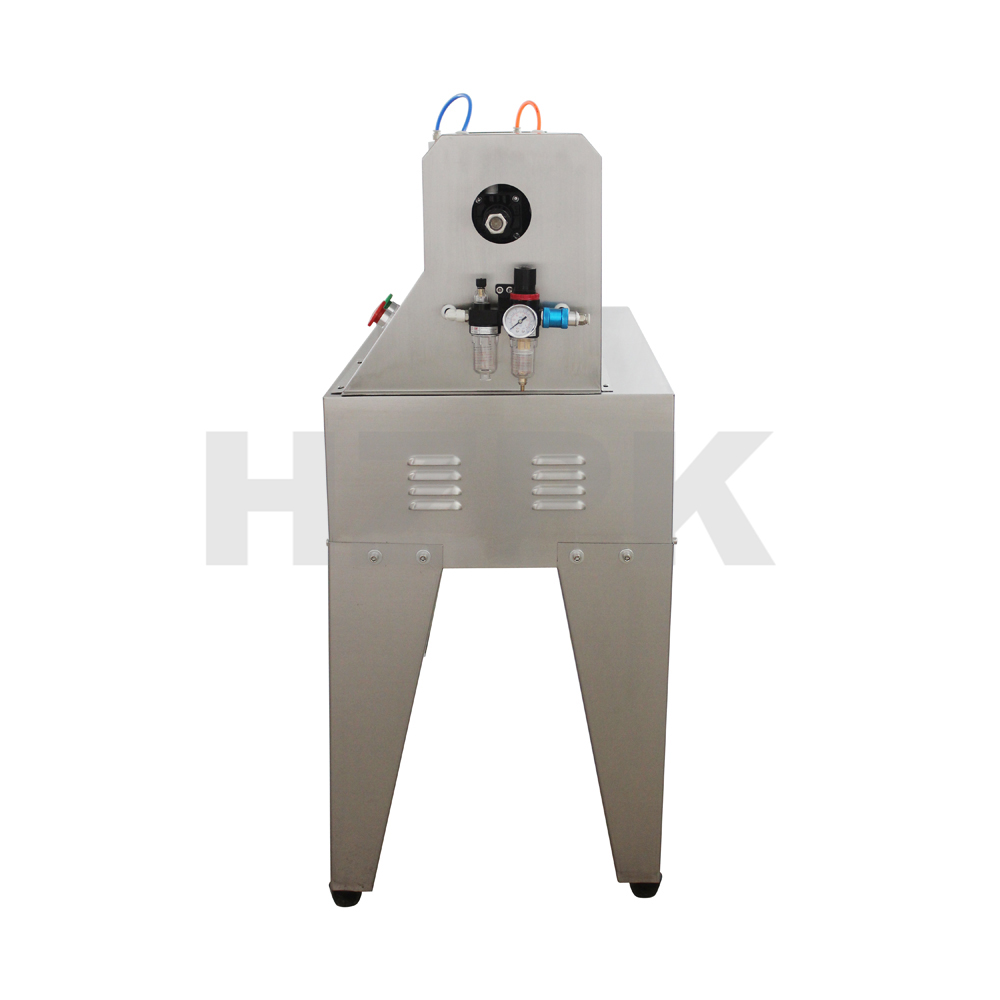

Ultrasonic plastic tube sealing machine is suitable for toothpaste, cosmetics, medicines, food tube sealing.
Horizontal aluminum alloy structure, stainless steel body, environment friendly and sanitation.
Independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance ,high efficiency.
Sealing principle:
Utilizing the energy produced by c high-speed vibration imposed on the tube and act on plastic tube in order heat the plastic tube rapidly and welding , under pneumatic mechanical pressure, forming the sealing the sealing patterns of to head mould foot mould while removal of excess material to reach good effect at last .
Parámetro:
| Tensión | 220V |
| Apparent power of transducer | 1500W/2000W±10% |
| Ultrasonic frequency | 20KHZ-15KHZ |
| Delay time | 0.1-9.9s |
| Welding time | 0.1-9.9s |
| Trimming time | 0.1-9.9s |
| Maximum sealing length | 80mm |
| Effective stroke of welding head | 64mm |
