Auto Bottle Feeding Washing Filling Capping Labeling Line
Why Choose Us
1. More than 20 years manufacture in packing machine
2. 100% QC inspection before shipment
3. 12 months warranty
4. Product Certificated by CE
Product Description

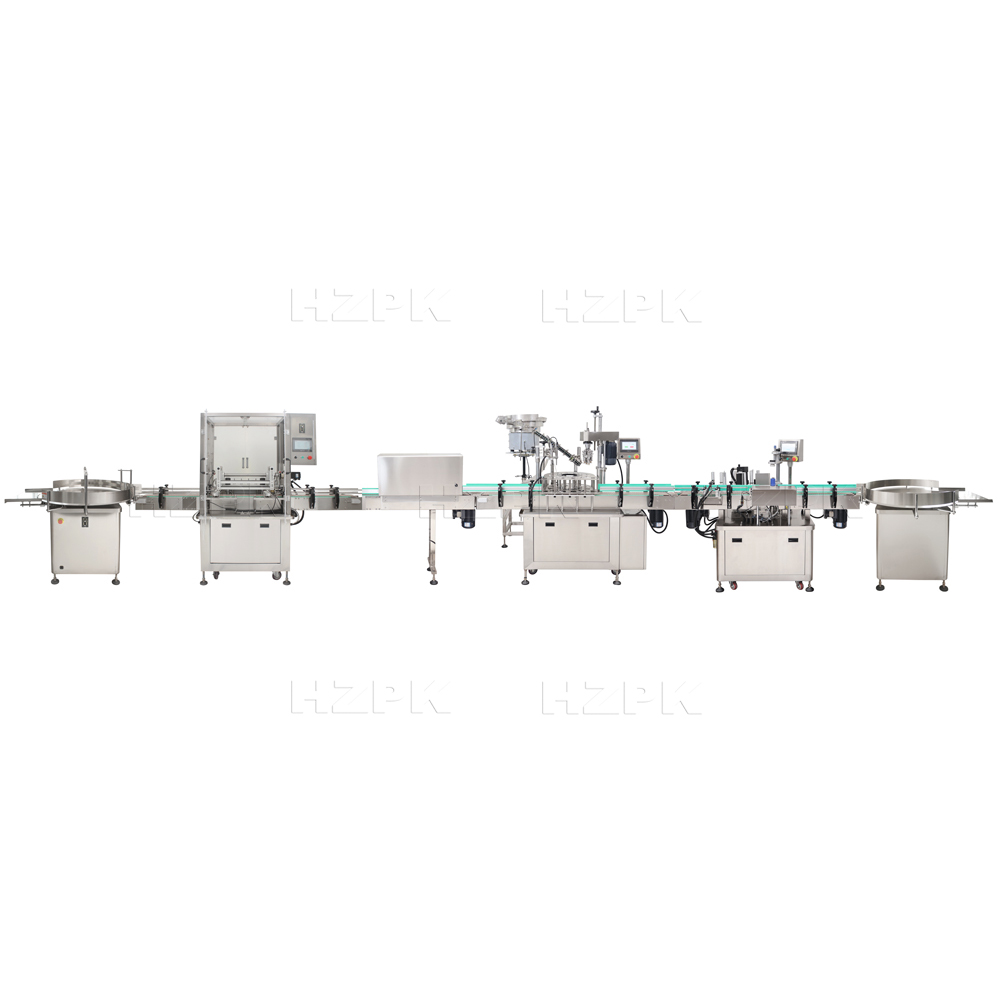

This automatic bottle packaging line integrates bottle washing, UV sterilization, rotary, dual head filling, vibratory bowl cap feeding, snap capping, labeling and inkjet coding. The system is controlled by a plc and touch screen, enabling intuitive human machine interaction and precise parameter adjustment. Multiple sensors are installed throughout the line to achieve a high degree of automation.

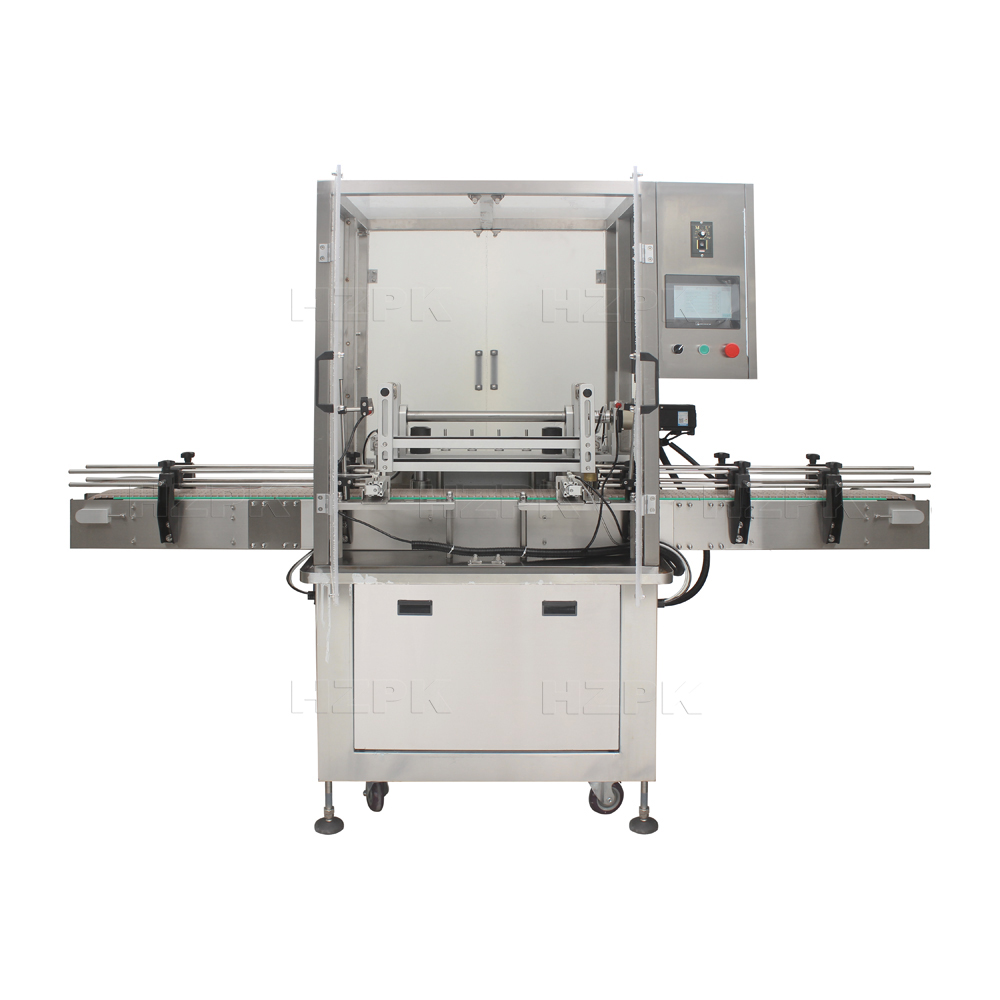

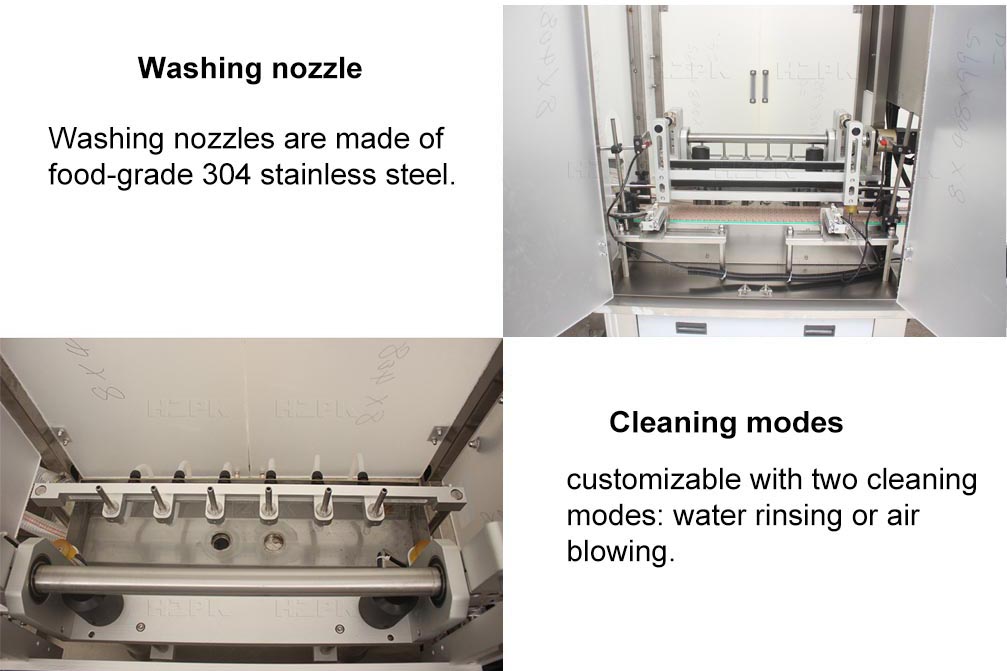

Bottle Washer >>
| Voltage | AC220V 50Hz |
| Power | 1.2kw |
| Air Consumption | 110L/min |
| Servo Motor | INOVANCE 0.75KW |
| PLC | DELTA |
| Touch Screen | Weinview |

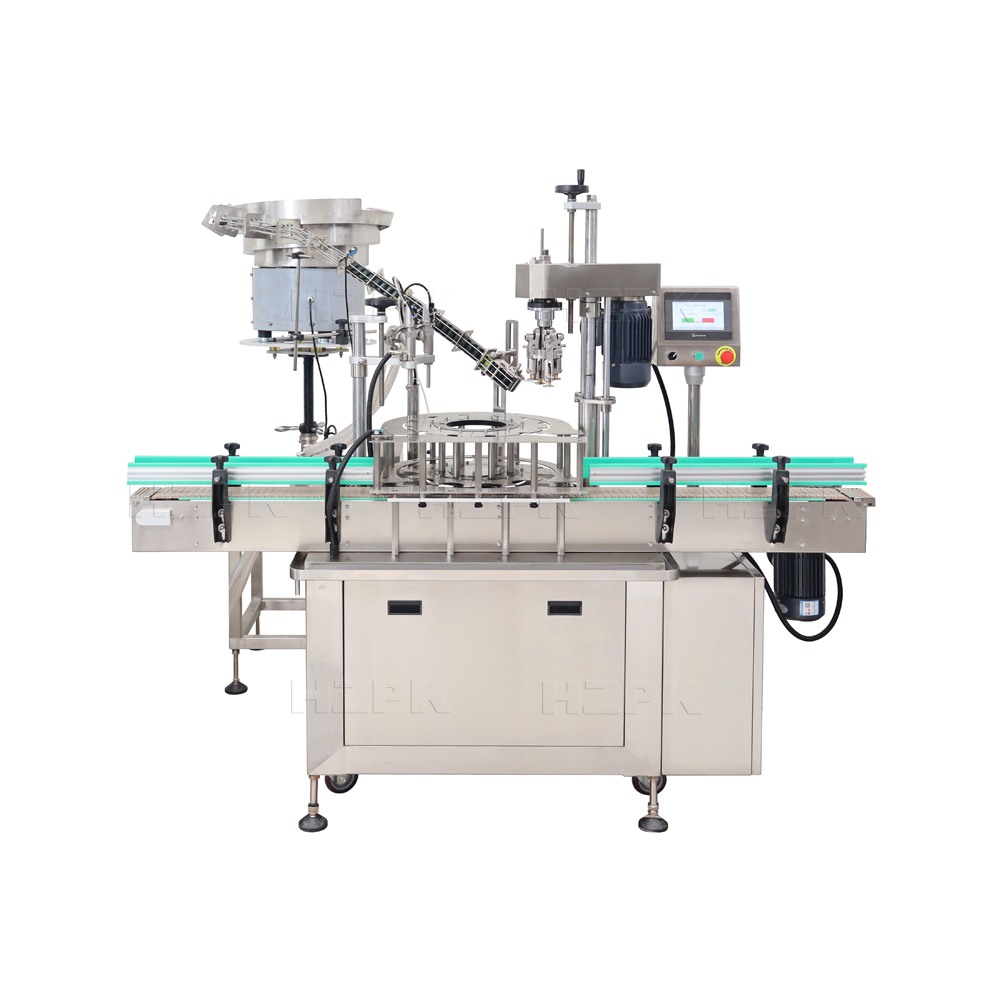

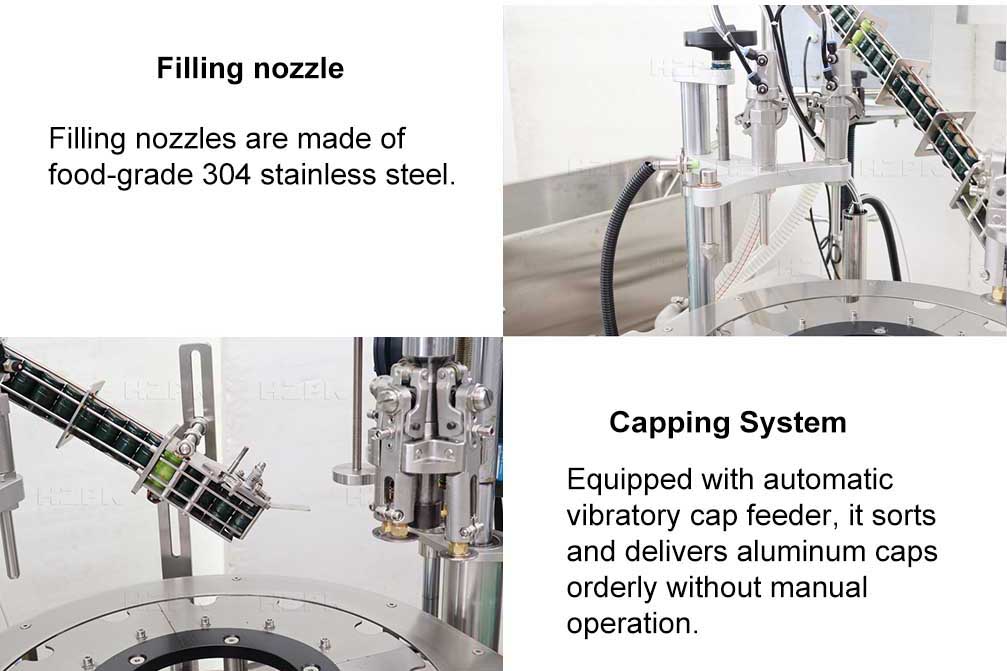

Rotary Filling and Capping Machine>>
| Voltage | AC220V 50Hz (Can be customized) |
| Power | 4.5KW |
| Filling volume | Customized according to client’s request |
| Capacity | 20 b/min |
| Filling material | Gear Pumps for liquid |
| Cap type | ROPP cap |
| Cap and bottle size | According to the sample size |

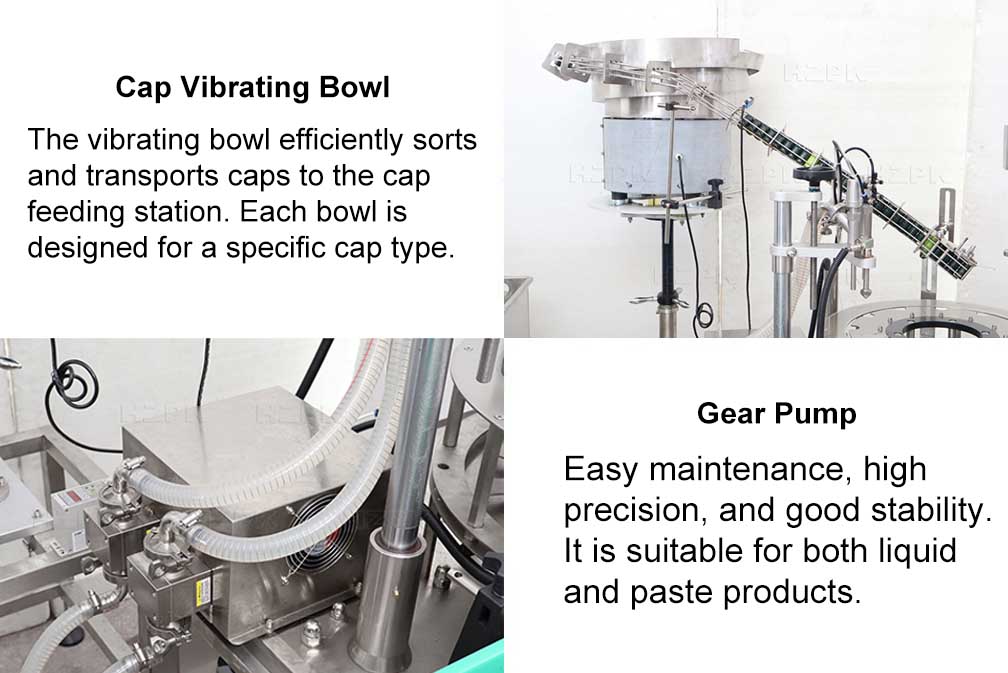

Equip with vibrating cap feeder(only for one size)

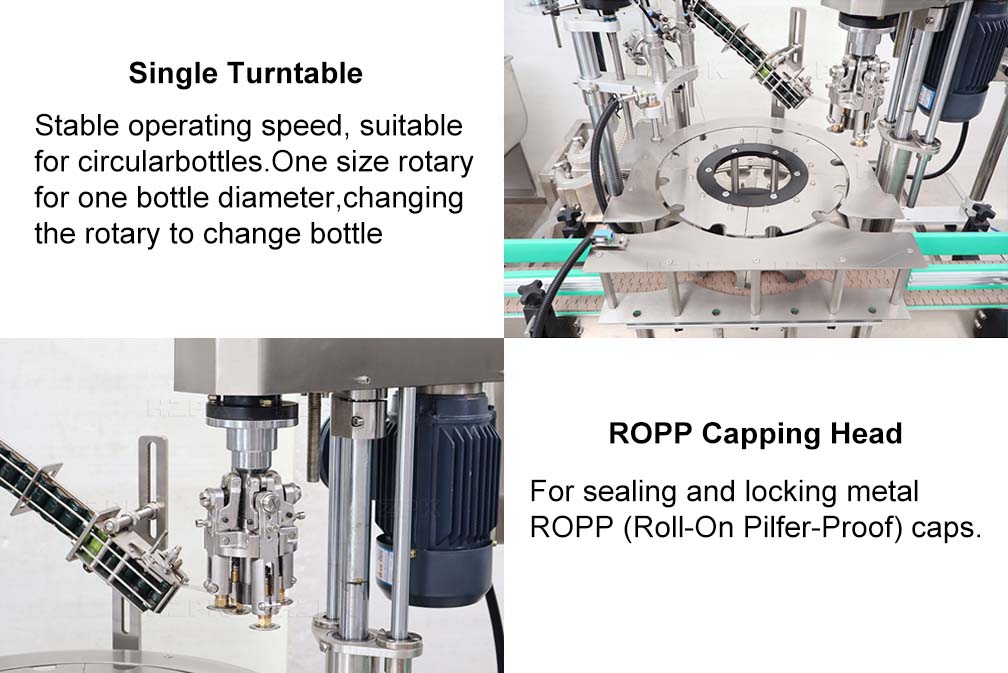

One size rotary for one bottle diameter,changing the rotary to change bottle

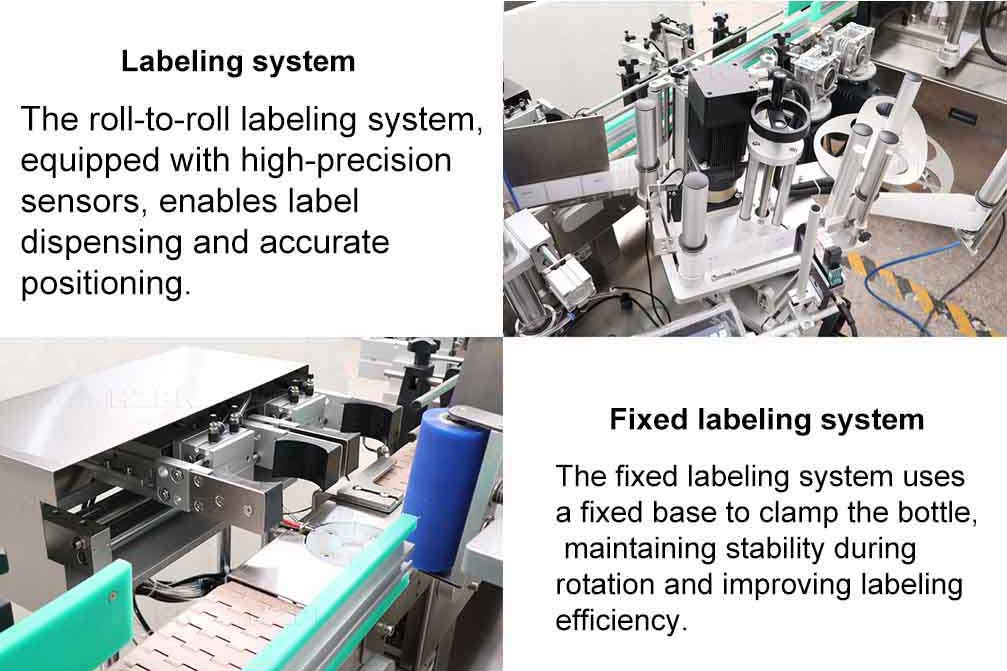

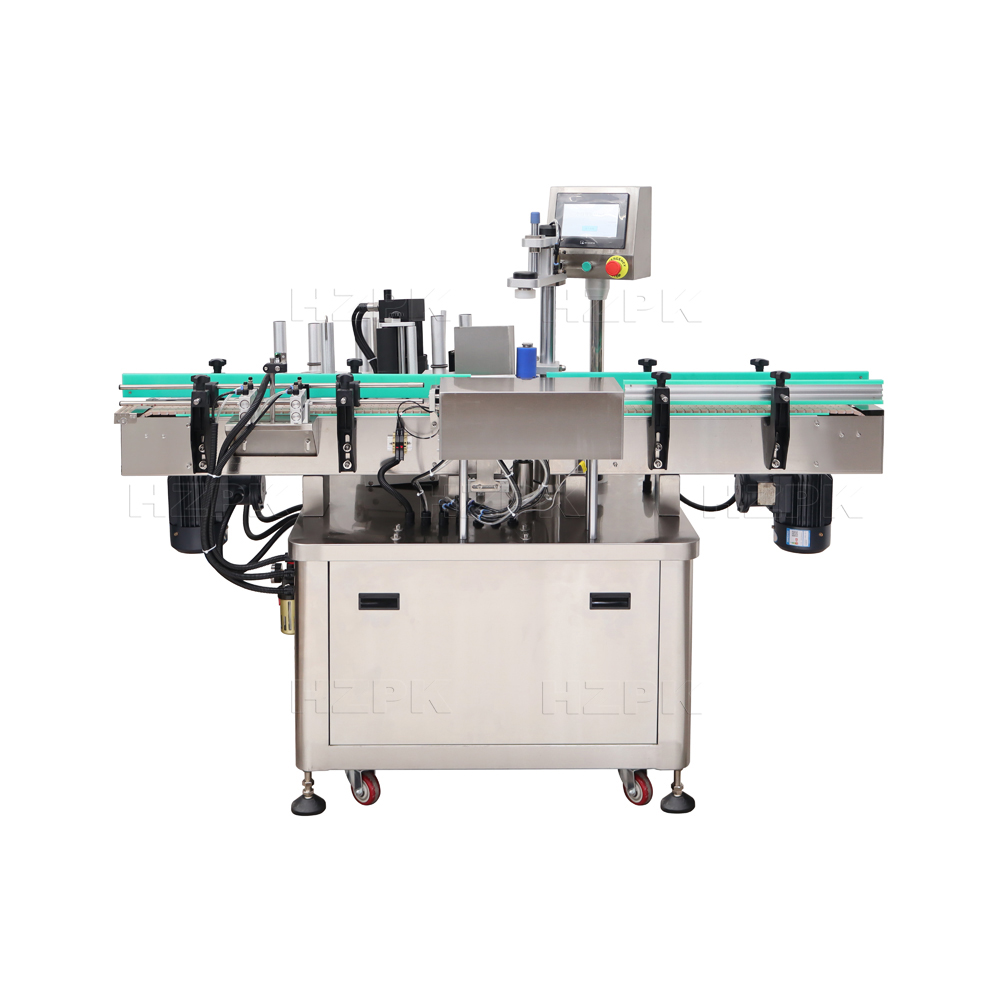

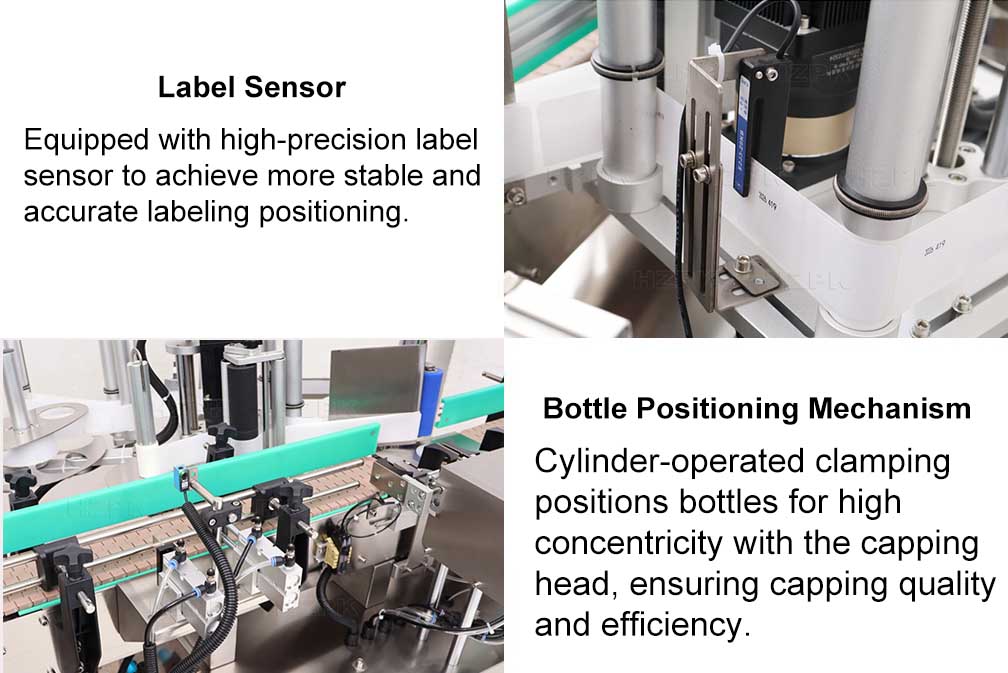

Labeling machine>>
| Voltage | AC 220V 50-60hz 110V can be customized |
| Power | 2.4KW |
| Operation | Left to right |
| Labeling speed | 10pcs/min |
| Labeling accuracy | ±1mm（depend on bottle） |
| Min.label roll Inner diameter | Ø75mm |
| Max.label roll out diameter | Ø260mm |
| Bottle diameter | Ø 30-100mm |
| Label size | W: 30-60mm,L: 30-60mm |
Printer>>
| Print height | 1-25.4mm (single printhead) |
| Print speed | up to 120 m/min |
| Resolution | up to 600 dpi |
| Print content | text, date, barcode, QR code, etc. |
| 7″ HD touch screen | |
| Languages | Chinese, English, Spanish (customizable) |
| Interfaces | USB, RS232 |
| Power | 100-240V |
