Automatic servo motor paste filling machine 8 filling nozzles
Why Choose Us
1. More than 20 years manufacture in packing machine
2. 100% QC inspection before shipment
3. 12 months warranty
4. Product Certificated by CE
Product Description
Introduction
Automatic paste filling machine is widely used in a variety of semi-fluid, paste, thick body, thick sauce, sauces and a variety of materials containing the filling of granules. Such as syrup, pulp drinks, honey, sesame, tomato sauce, jam, peanut butter, chili sauce and a variety of paste filling.
Features:

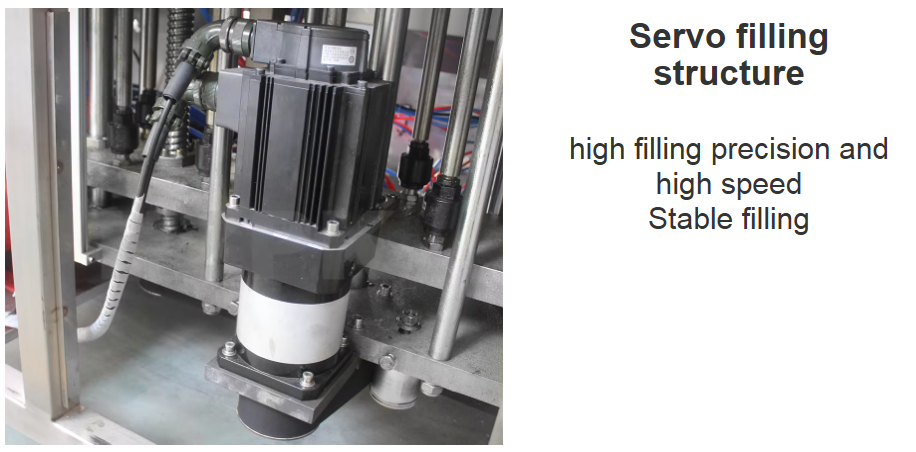

1. It adopts servo filling structure, which has high filling precision and high speed.
2. Automatic control with PLC and touch screen system, easy to adjust.

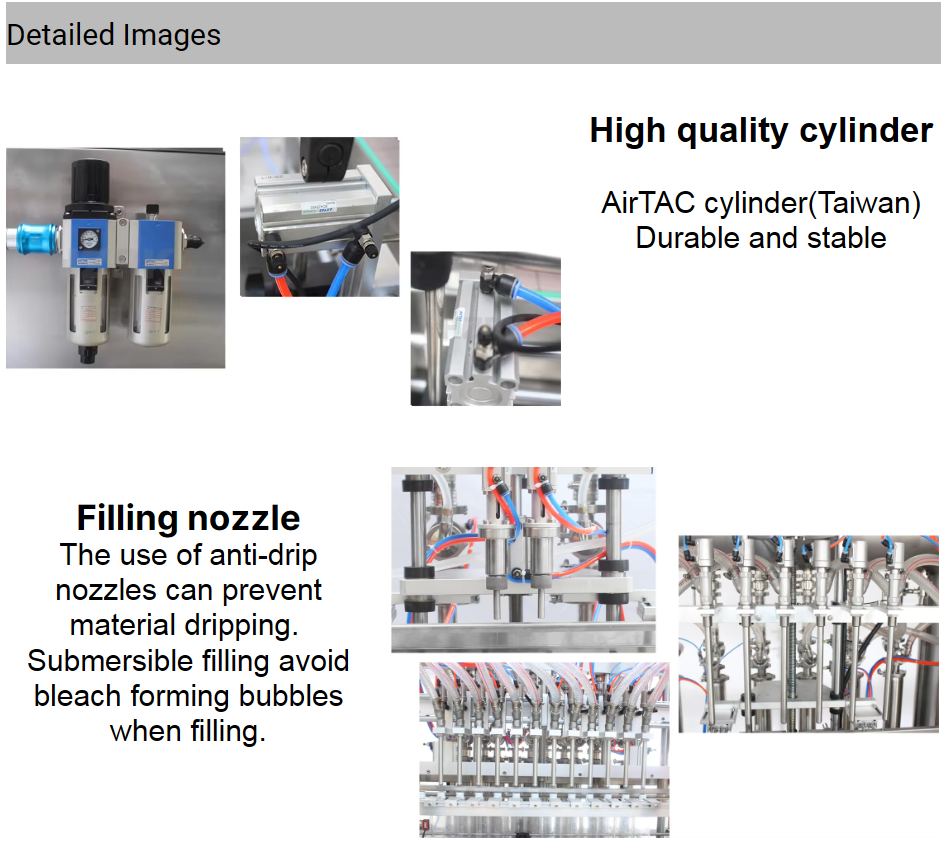

3. The use of anti-drip nozzles can prevent material dripping.
4. To ensure the bottles and filling nozzles are in the correct position, we add a special bottles position device to make the whole filling process smooth and stable.
5. The whole machine is made of 304 stainless steel.
6. The machine can be customized according to customer.
Parameter
| Voltage | 220V 50Hz |
| Power | 0.15KW |
| Filling accracy | ±1% |
| Filling speed | 120-300bot/h(single head) |
| Filling Nozzles | 8 nozzles |
| Filling Range | 30-100ml / 30-300ml / 50-500ml ,100-1000ml |
