Digital gear pump weighing filling machine
Why Choose Us
1. More than 20 years manufacture in packing machine
2. 100% QC inspection before shipment
3. 12 months warranty
4. Product Certificated by CE
Product Description

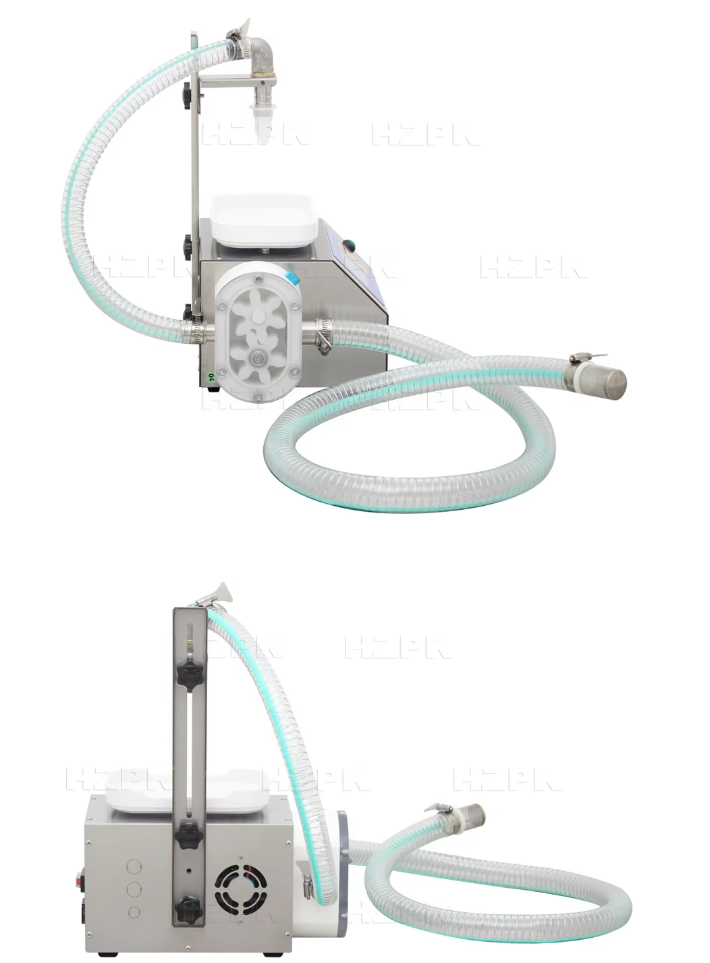

The small Digital Control gear pump filling machine is suitable for filling viscous materials.
Features：

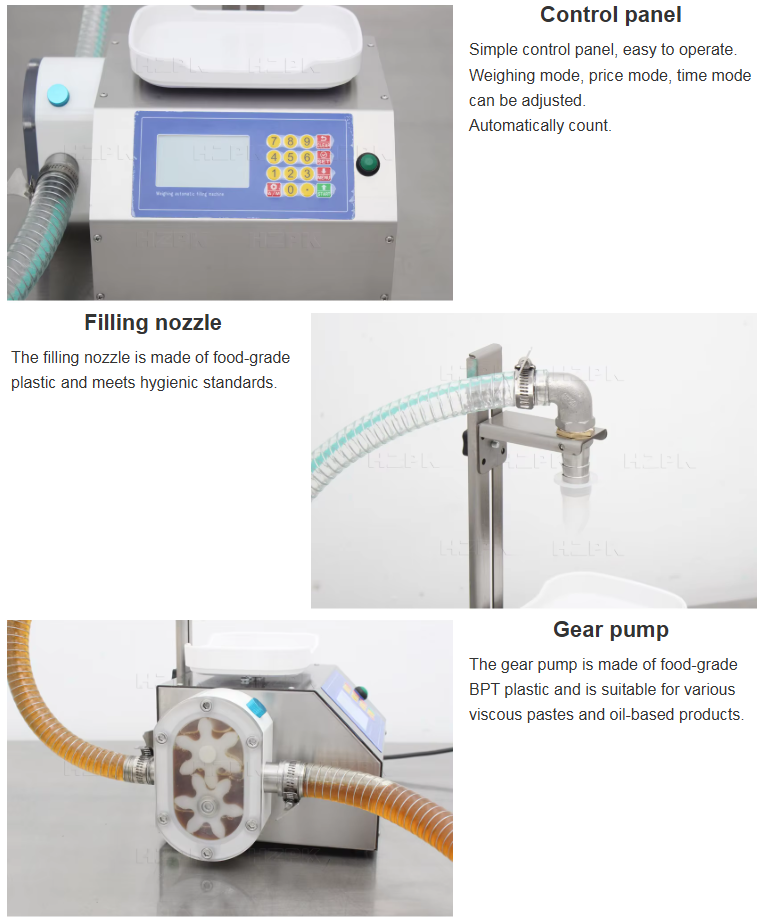

1. It uses a gear pump drive, making it suitable for pasty materials with different viscosities.

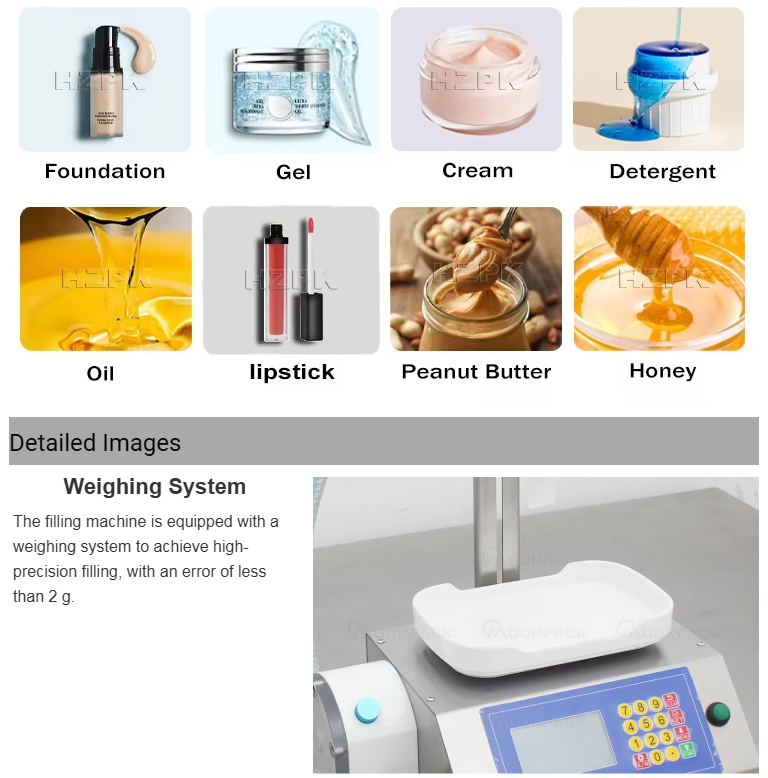

2. Equipped with weight system, it can precisely control the weight of the material filled each time.
3. Depending on the usage scenario, the machine can be set to weight mode, price mode, or time mode.
4. It features a back-suction function, effectively preventing drips.
Parameter
| Model | HZ-A3 |
| Voltage | 220V 50-60Hz |
| The maximum weight | 3000g |
| Filling accuracy | ≤2g |
| Pump maximum flow rate | 3500ml/min |
| Recommended filling range | 10-3000g |
| Filling nozzle diameter | 20 mm |
| Pump type | Gear pump |
| Maximum applicable temperature | 70℃ |
