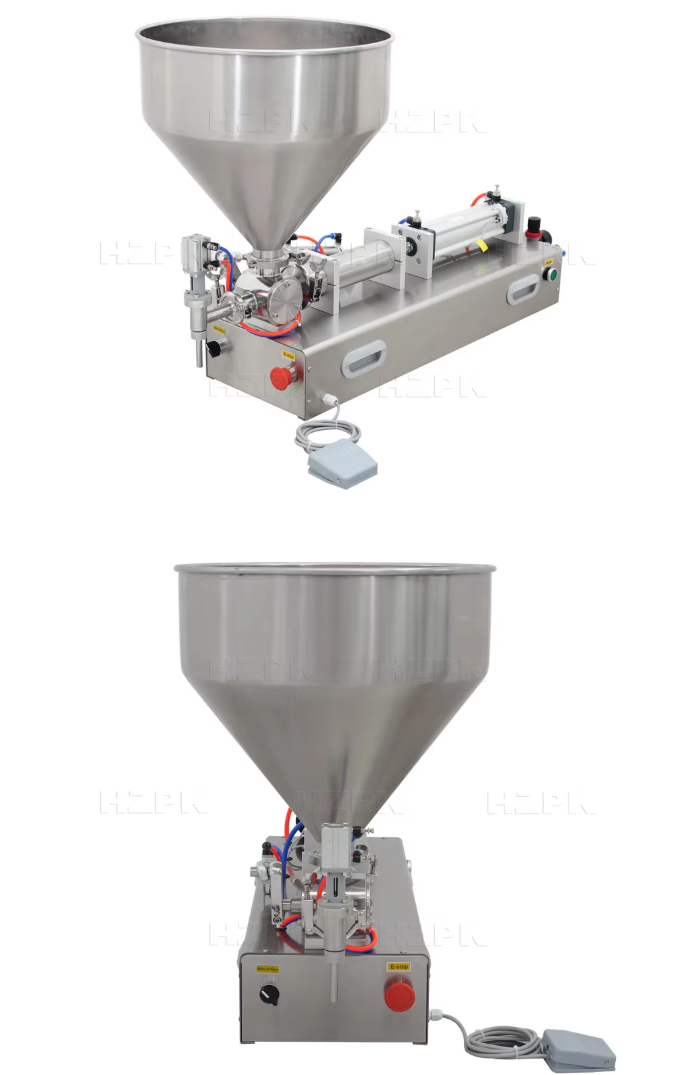

New G1WGD horizontal single head paste filling machine
Why Choose Us
1. More than 20 years manufacture in packing machine
2. 100% QC inspection before shipment
3. 12 months warranty
4. Product Certificated by CE
Product Description
Introduction
This machine is the ideal equipment for filling high viscosity fluid, paste. Applicable to cosmetic, food, beverages and special industries. This series of filling machine is divided into single head, double head models.
Feature
1. This machine has two pneumatic filling ways, foot and automatic, and they can be switched randomly.
2. The machine is made of full stainless steel,look beautiful and meets the CE standard level.
3. Its structure design is reasonable, small size, easy to operate.
4. There are filling volume adjustment handle, filling speed can be adjusted, filling high precision.
Filling Machine Model Description:
Filling range: 10-100ml, 30-300ml, 50-500ml, 100-1000ml, 300-2500ml, 1000-5000ml.
Parameter
| Model | G1WGD100 |
| Filling range | 10-100ml |
| Product capacity | 5-20 bots/min |
| Filling Accuracy | ±1% |
| Air Pressure | 0.4-0.6MPa |
| Required Air Compressor | ≥1.5KW 65L |
