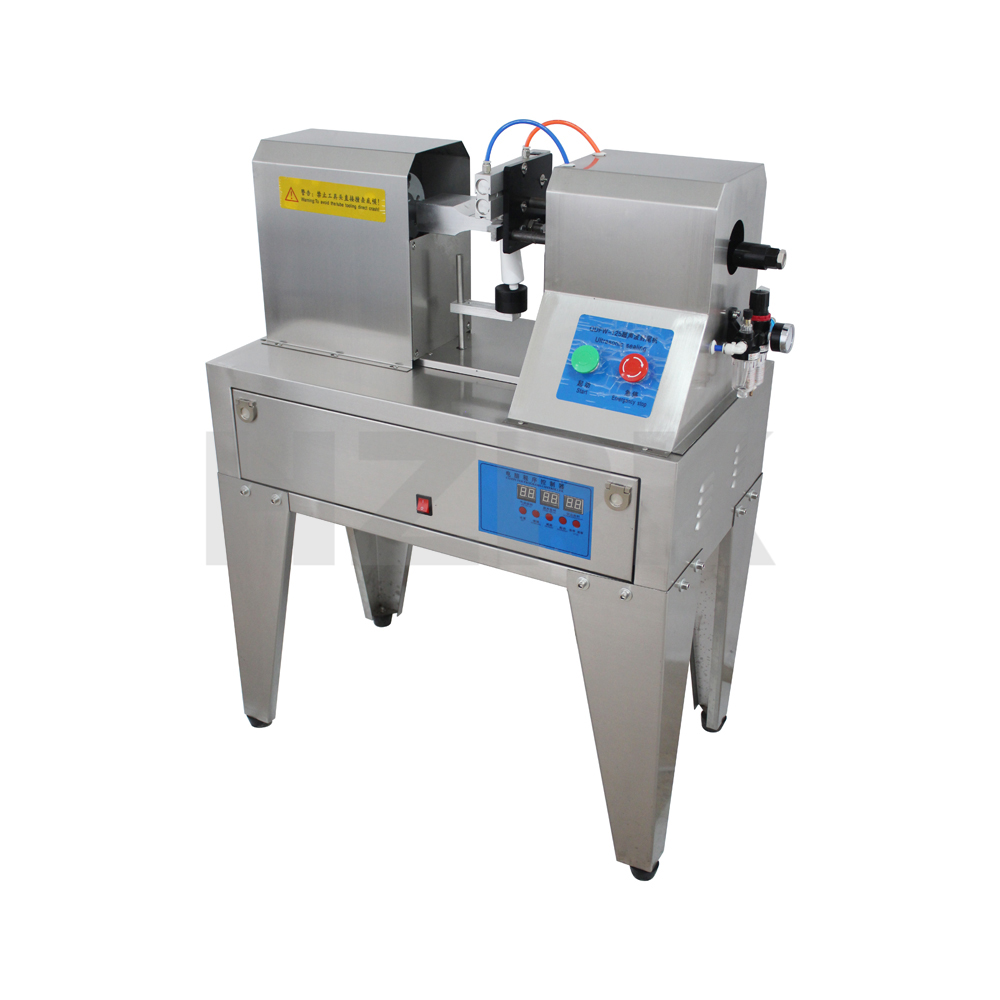

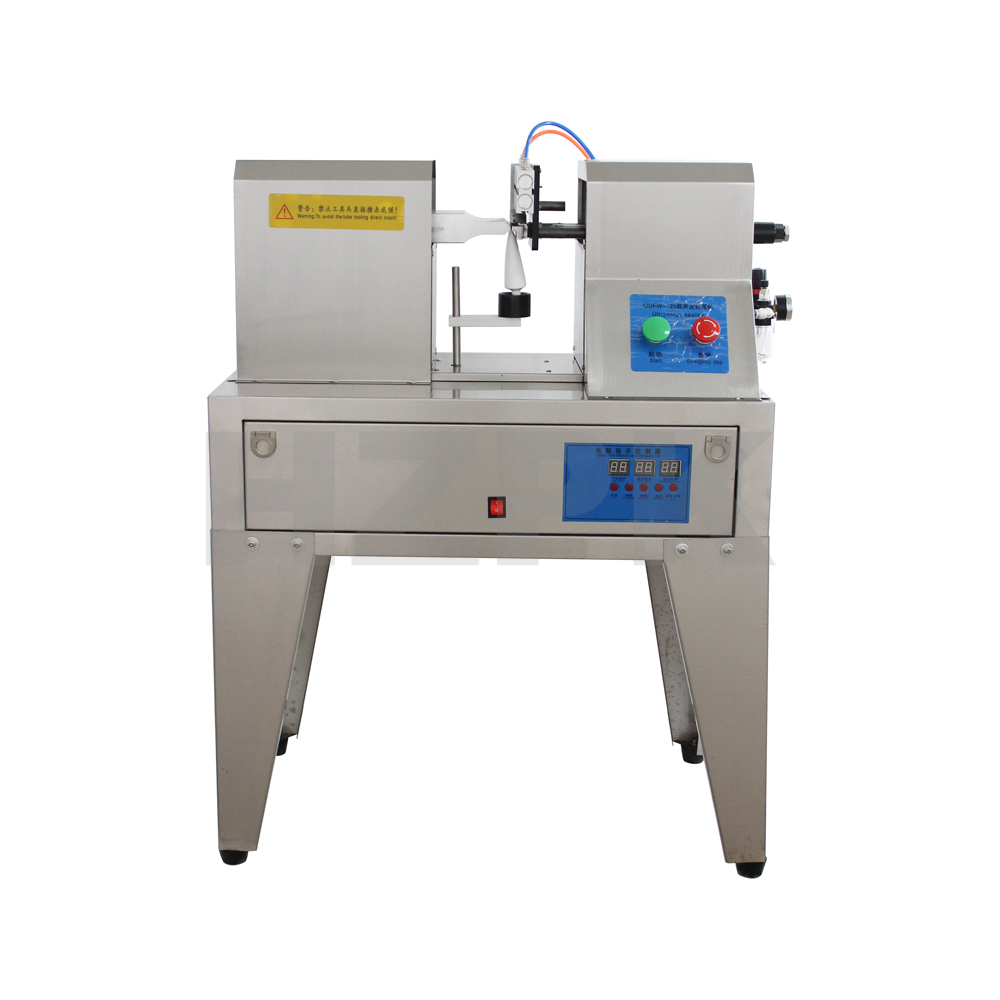

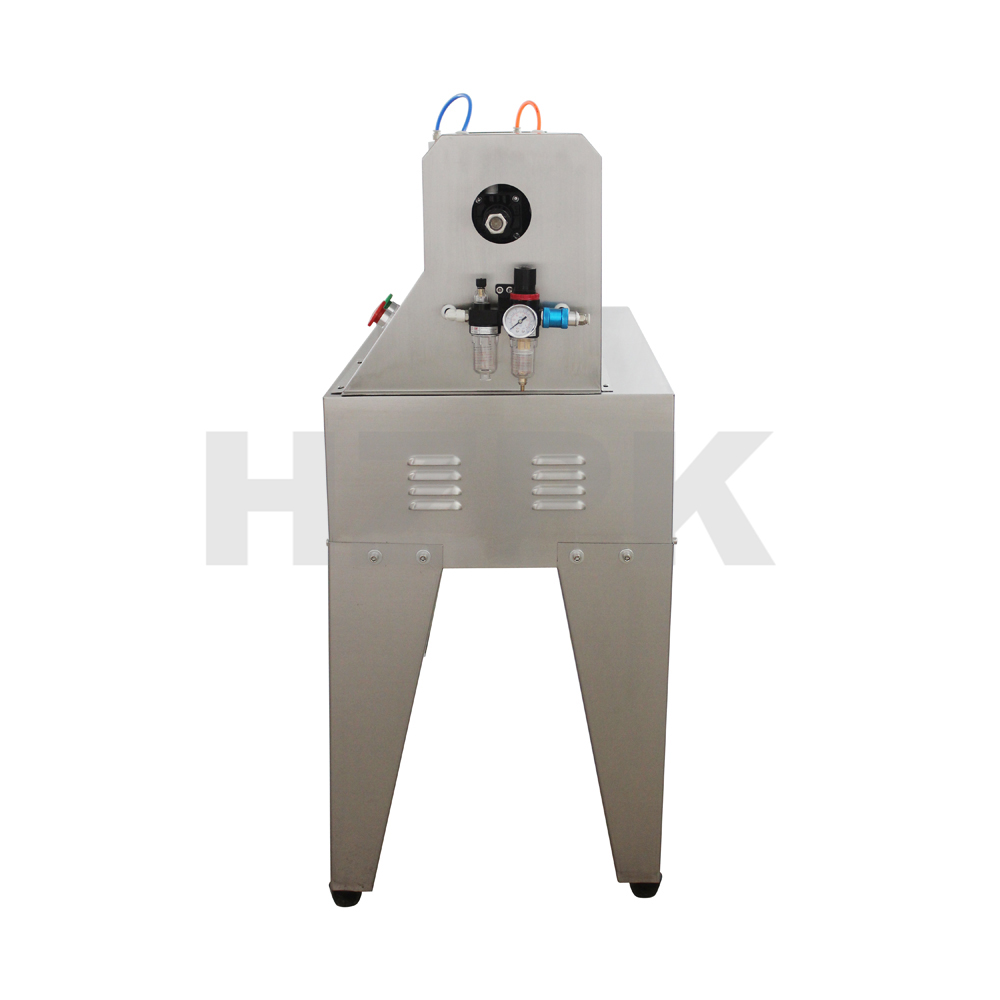

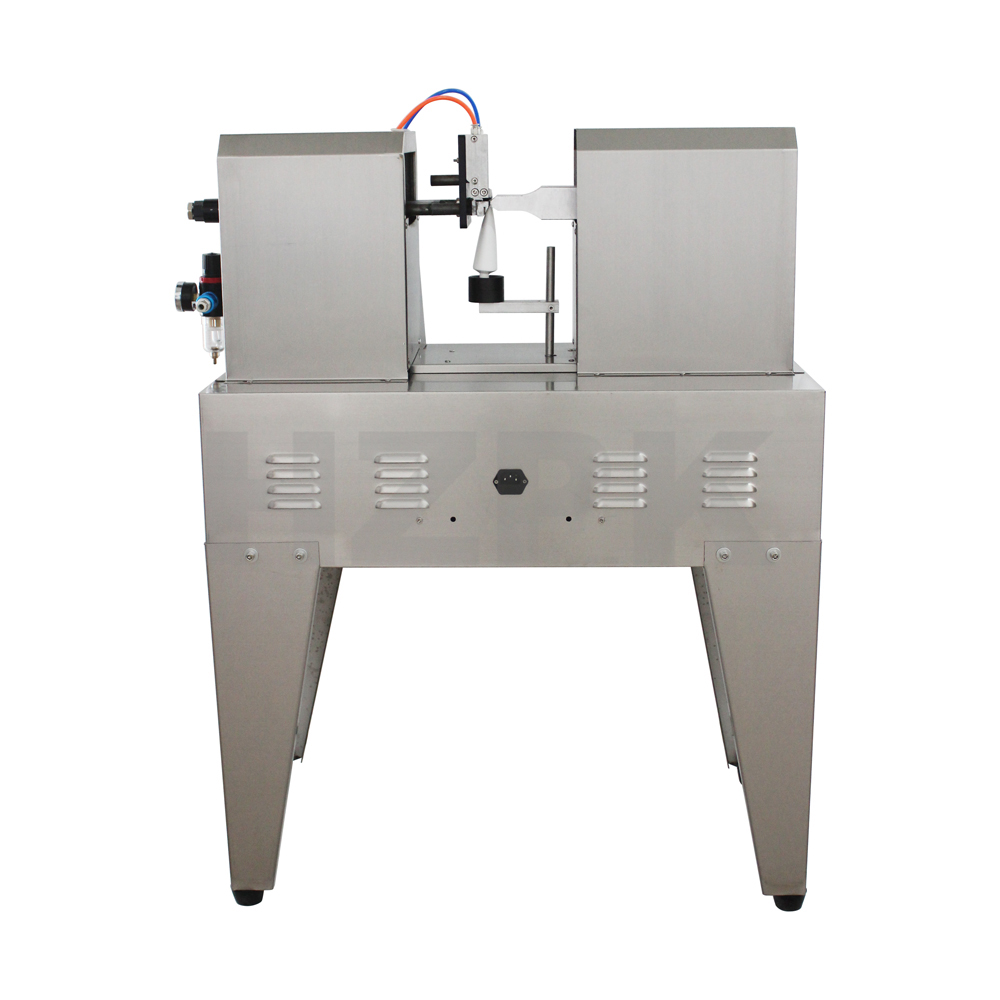

Semi-automatic ultrasonic sealing machine
Why Choose Us
1. More than 20 years manufacture in packing machine
2. 100% QC inspection before shipment
3. 12 months warranty
4. Product Certificated by CE
Product Description
Ultrasonic plastic tube sealing machine is suitable for toothpaste, cosmetics, medicines, food tube sealing.
Horizontal aluminum alloy structure, stainless steel body, environment friendly and sanitation.
Independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance ,high efficiency.
Sealing principle:
Utilizing the energy produced by c high-speed vibration imposed on the tube and act on plastic tube in order heat the plastic tube rapidly and welding , under pneumatic mechanical pressure, forming the sealing the sealing patterns of to head mould foot mould while removal of excess material to reach good effect at last .
Parameter:
| Voltage | 220V |
| Apparent power of transducer | 1500W/2000W±10% |
| Ultrasonic frequency | 20KHZ-15KHZ |
| Delay time | 0.1-9.9s |
| Welding time | 0.1-9.9s |
| Trimming time | 0.1-9.9s |
| Maximum sealing length | 80mm |
| Effective stroke of welding head | 64mm |
